PCB Manufacturing
From Prototype to Mass Production
Seven PCB types — FPC, multilayer, high-frequency, aluminum, rigid-flex, ceramic, and copper-based — all manufactured with in-house SMT assembly and conformal coating capabilities.
PCB Capabilities
Seven PCB Types, One Partner
From standard FR4 multilayer to exotic ceramic substrates — we deliver the right board for your application.

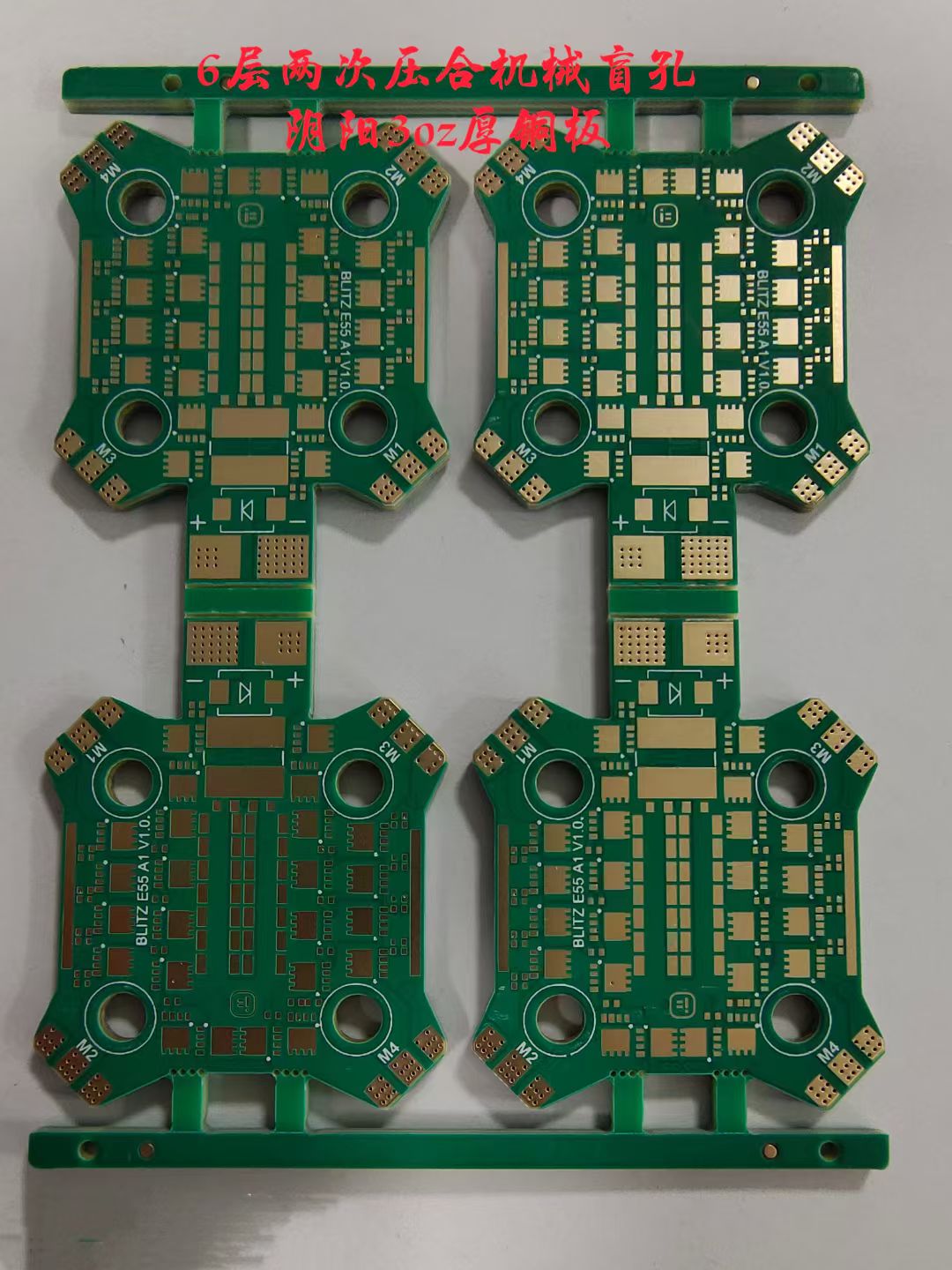

Multilayer PCB
Up to 20+ layers with controlled impedance, blind/buried vias, and HDI technology for high-density applications.

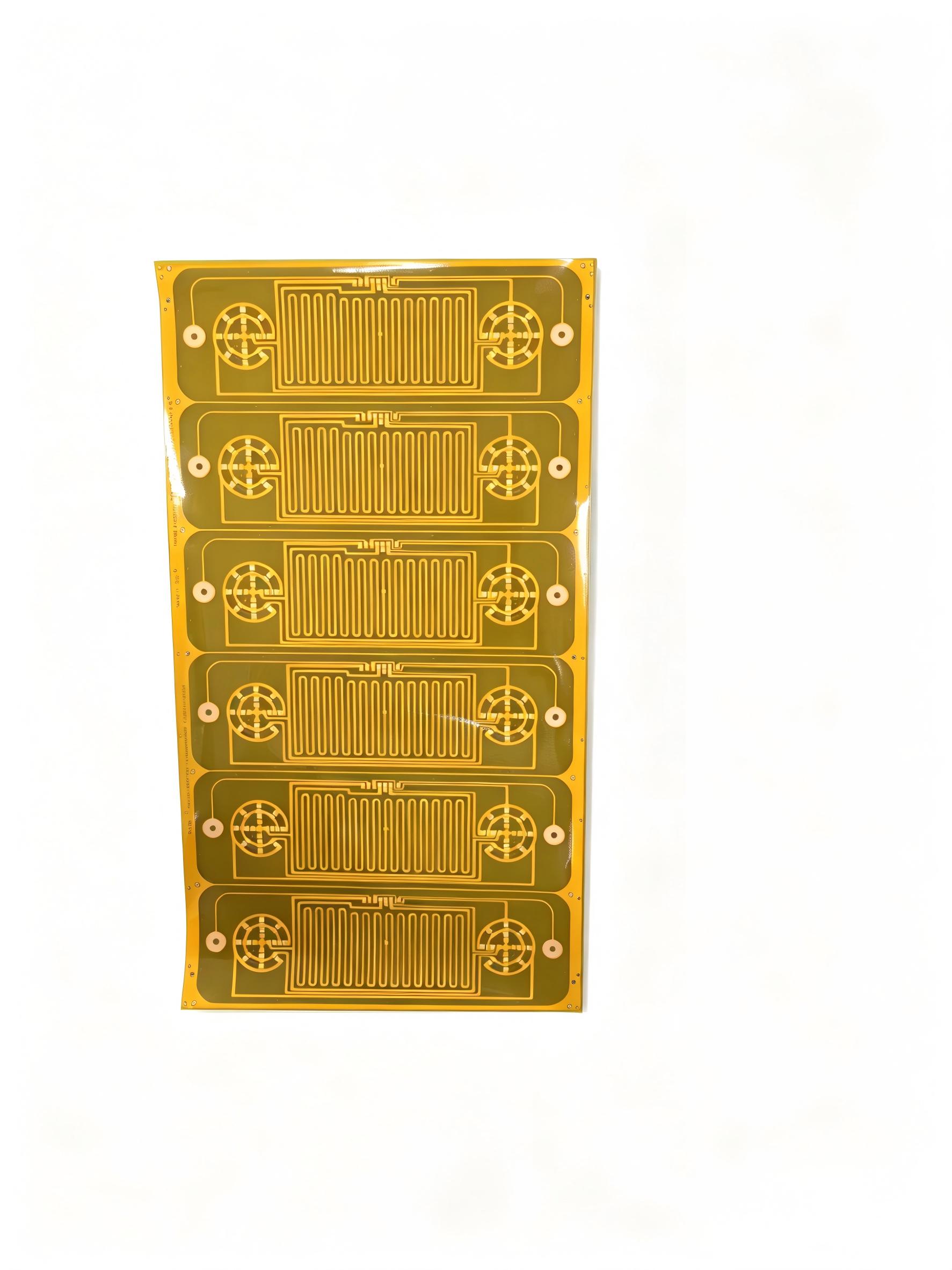

FPC (Flexible Circuit)
Flexible printed circuits for wearable devices, compact enclosures, and dynamic bending applications.

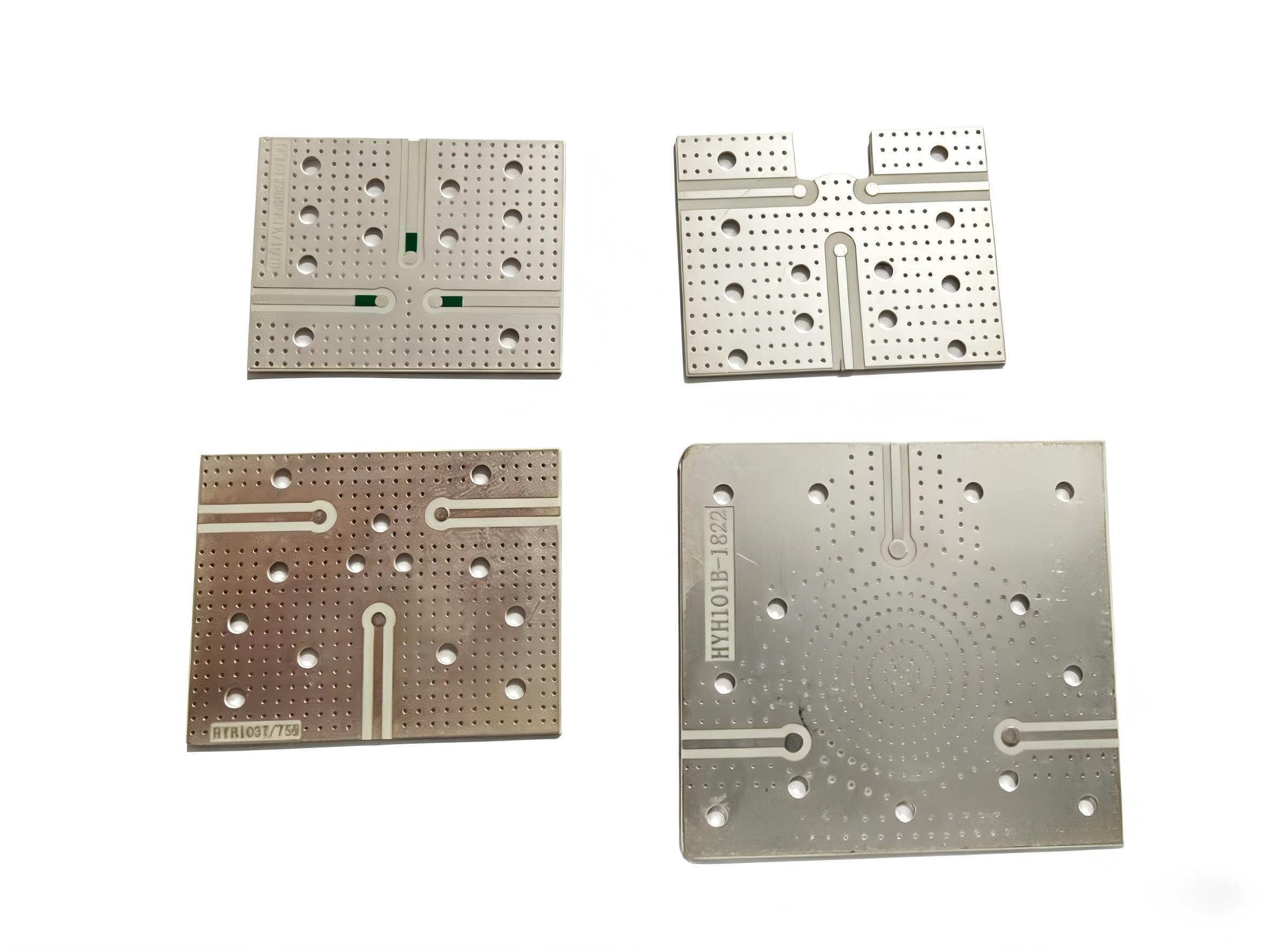

High-Frequency / Rogers PCB
Low-loss RF materials (Rogers RO4350B, etc.) for microwave, antenna, and high-speed digital applications.
Aluminum PCB
Metal-core PCBs with superior thermal dissipation for high-power LED lighting and power electronics.

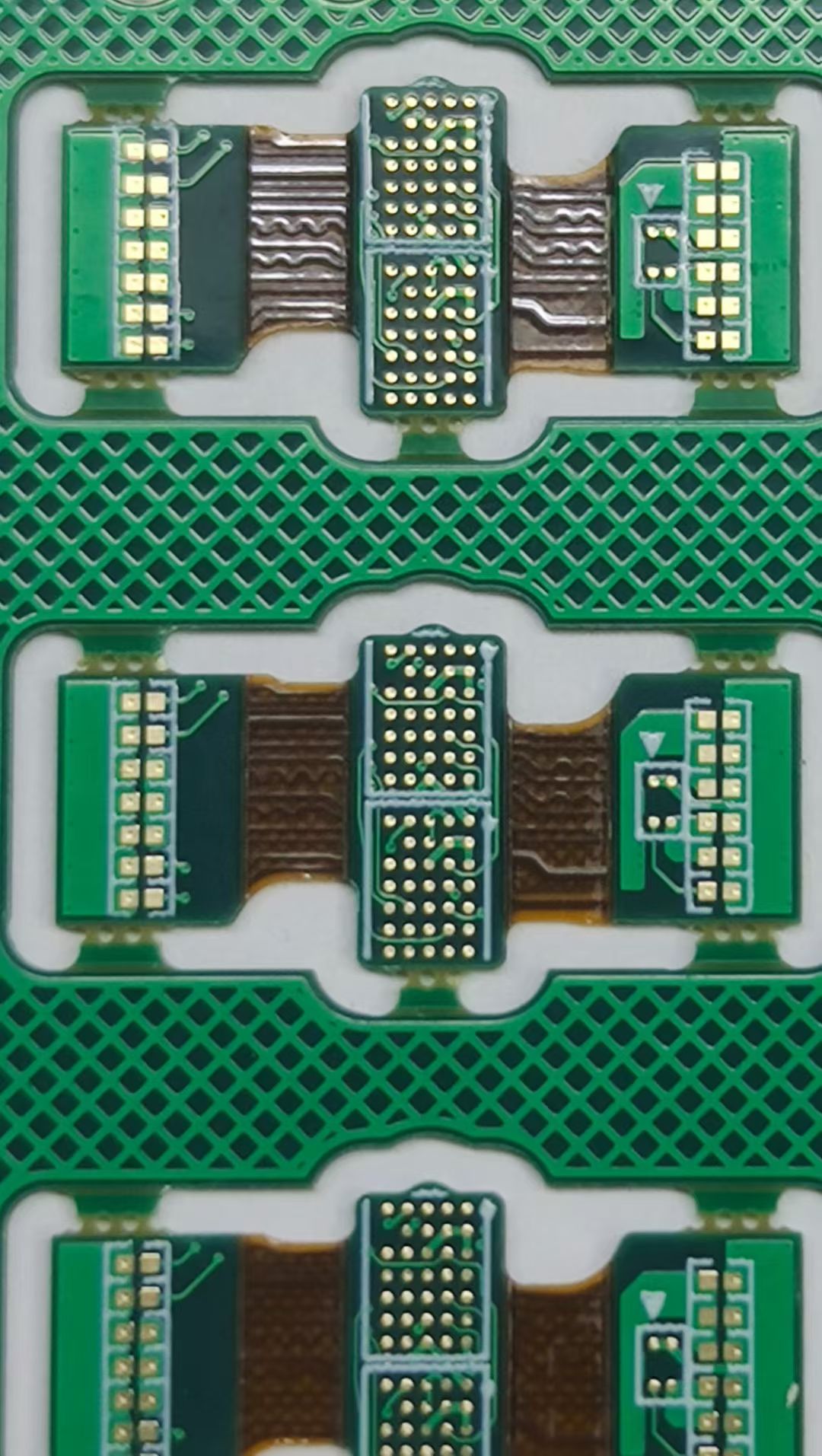

Rigid-Flex PCB
Hybrid rigid-flexible boards combining the stability of rigid PCBs with the bendability of flex circuits.

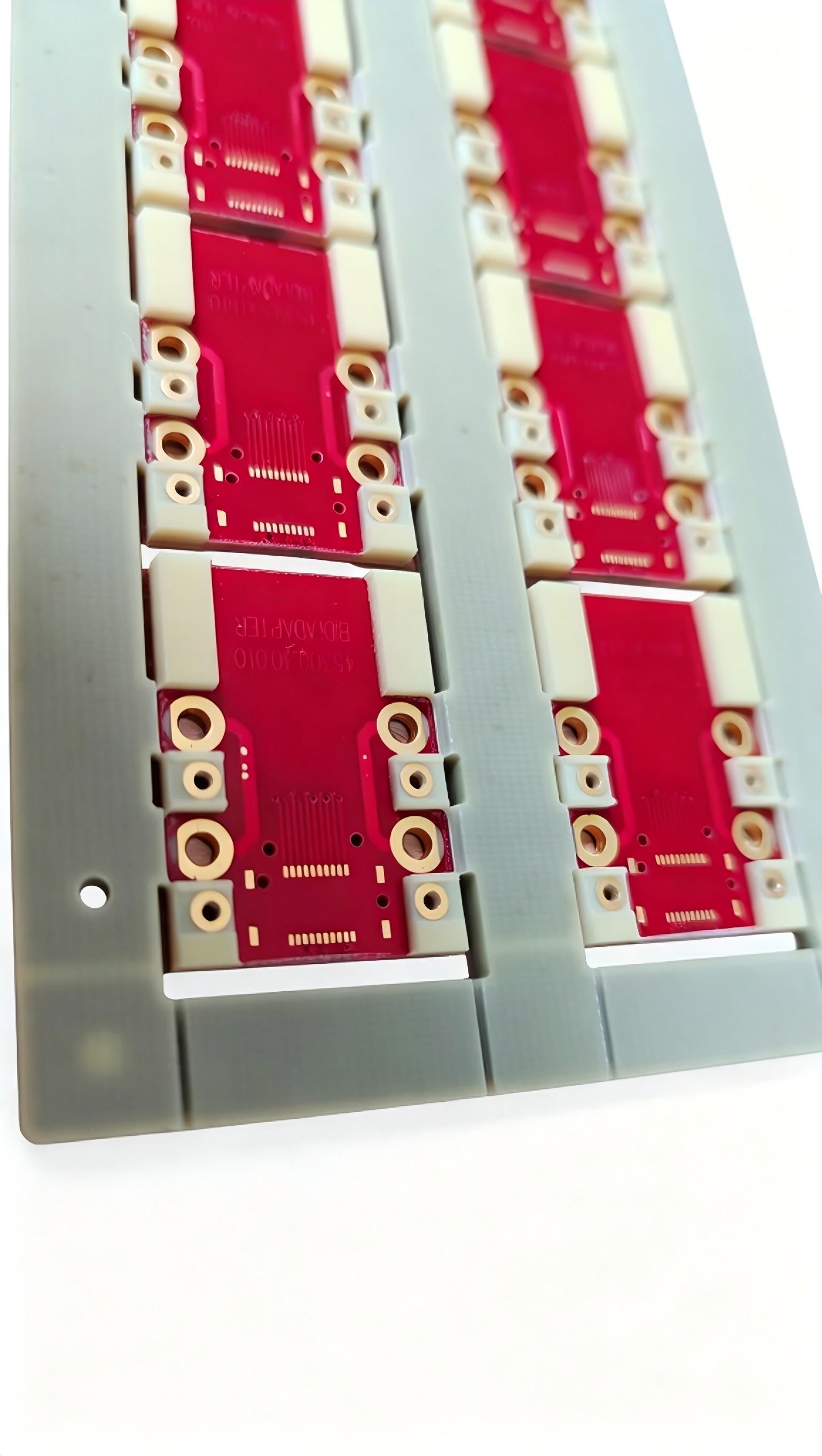

Ceramic PCB
High-thermal-conductivity ceramic substrates (alumina, AlN) for extreme-temperature and high-power applications.

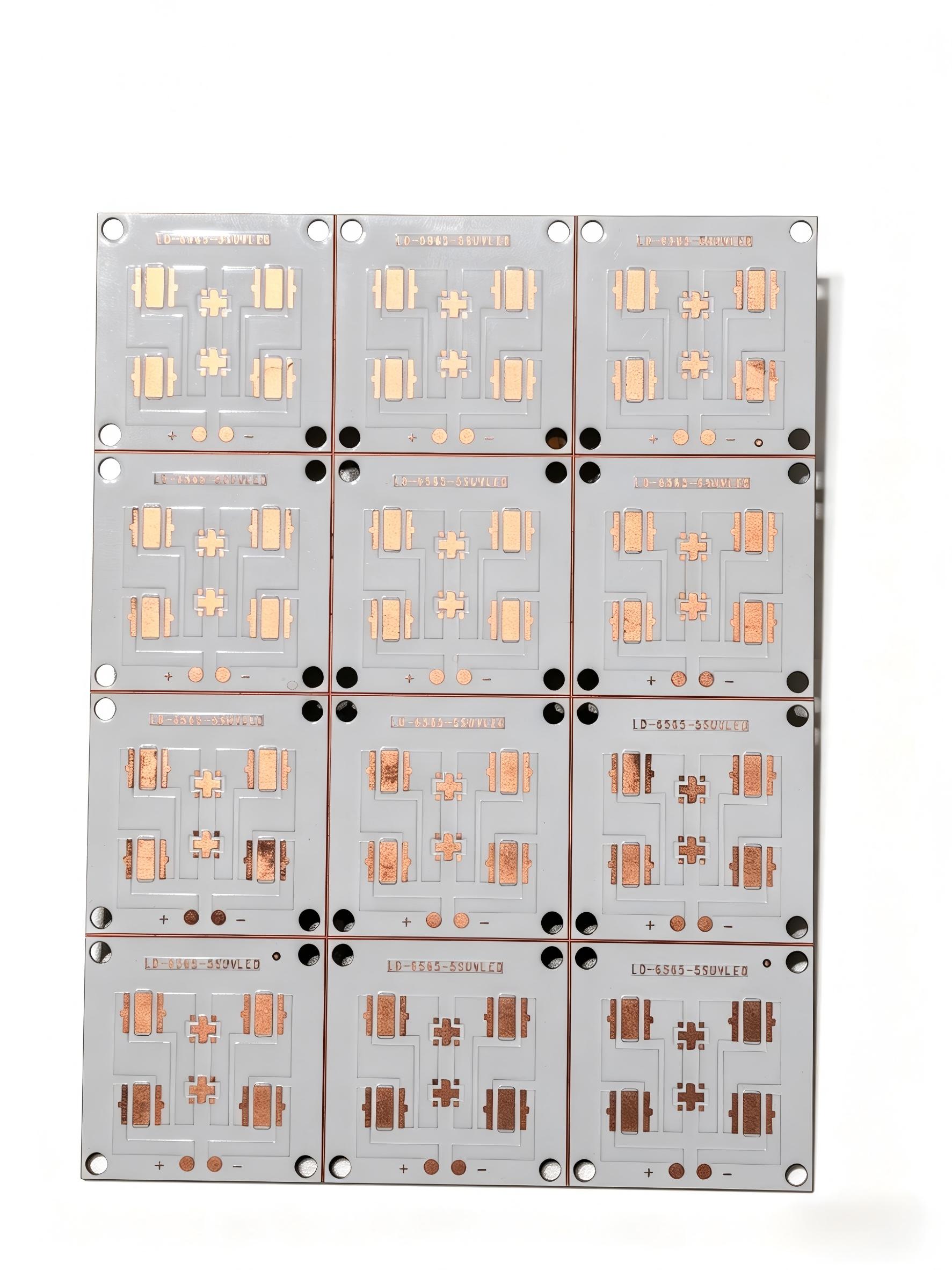

Copper-Based PCB
Heavy copper and thick copper PCBs for high-current, high-power, and thermal management applications.

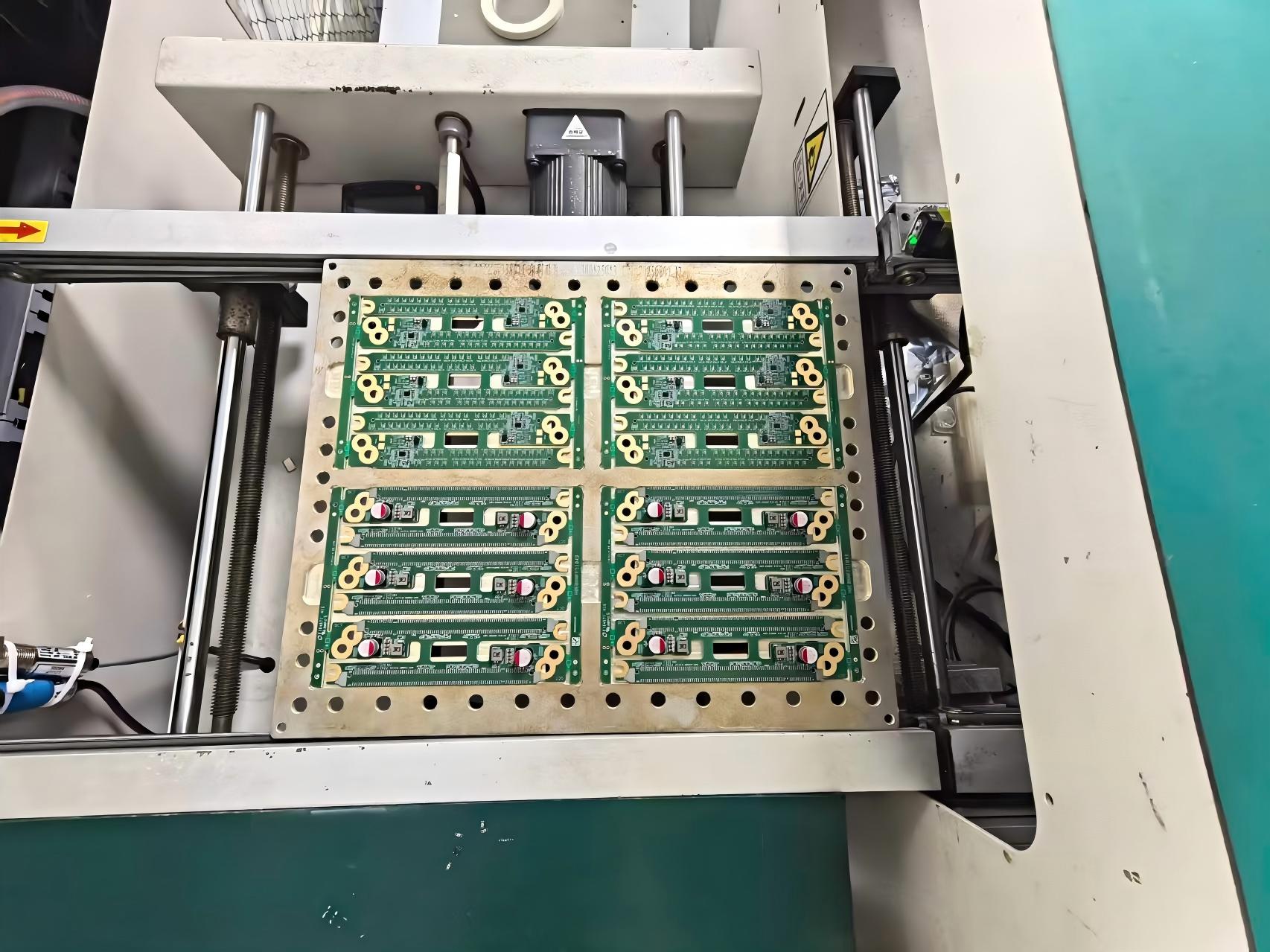

In-House SMT Assembly
Full SMT Line.
Zero Compromise.
IPC-A-610 Class 2/3 compliant assembly with SPI, AOI, and X-Ray at every stage. From prototype to mass production under one roof.
Production Equipment
Advanced SMT Manufacturing Line
Precision equipment ensuring consistent quality across every production batch.

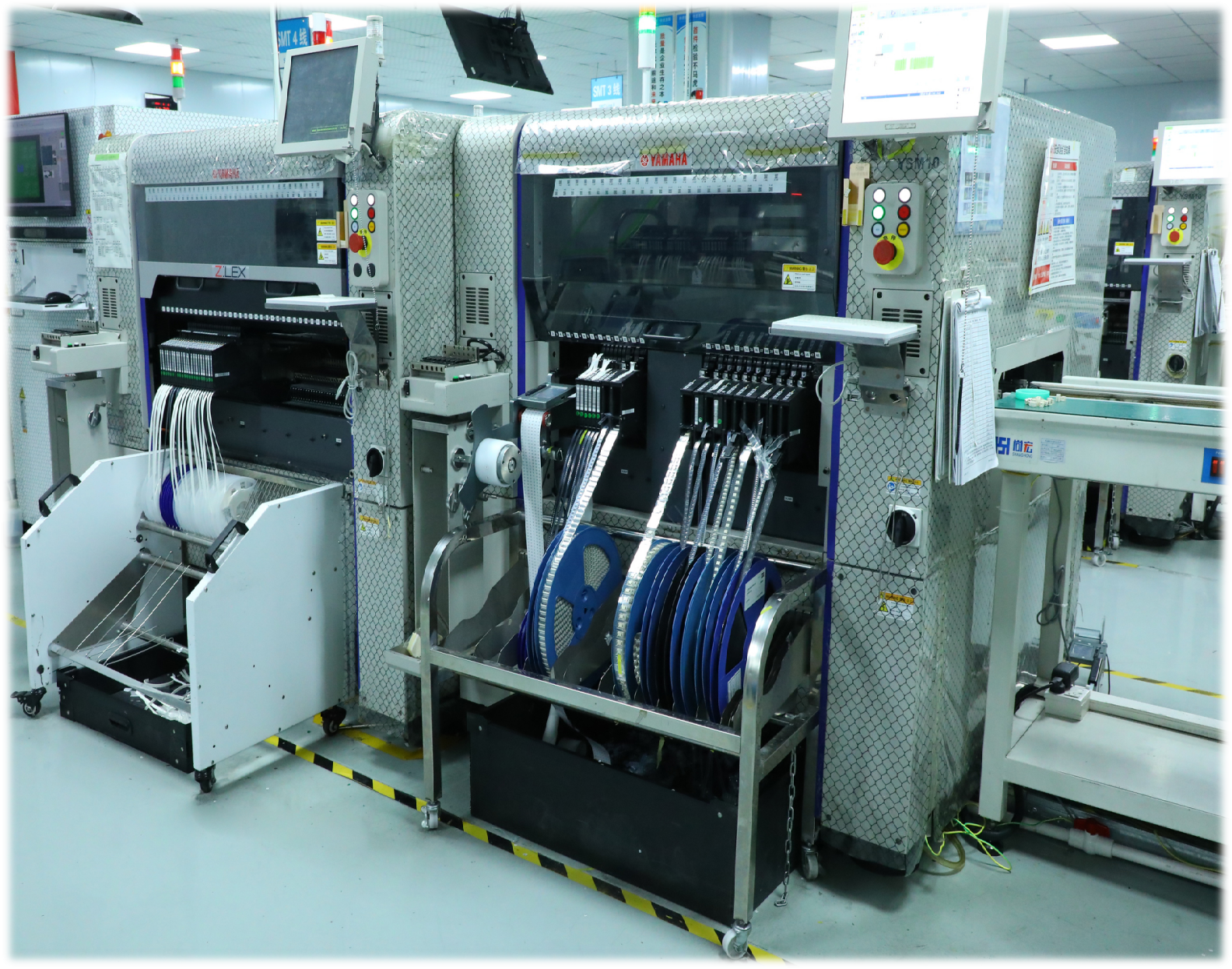

Yamaha Pick & Place
High-speed placement with ±0.03mm accuracy for 01005 to fine-pitch components.

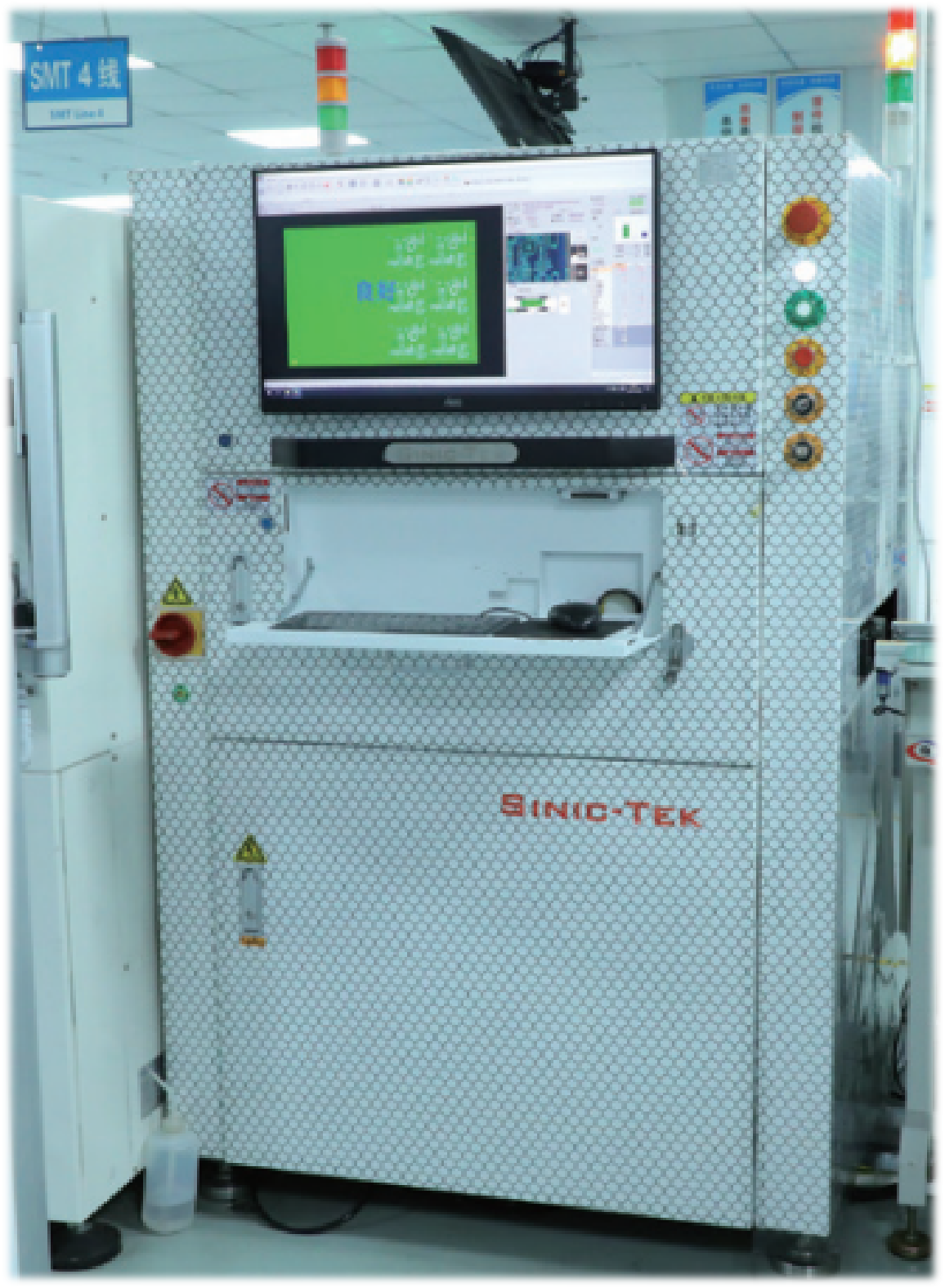

SPI (Solder Paste Inspection)
3D solder paste inspection ensuring consistent print quality before placement.

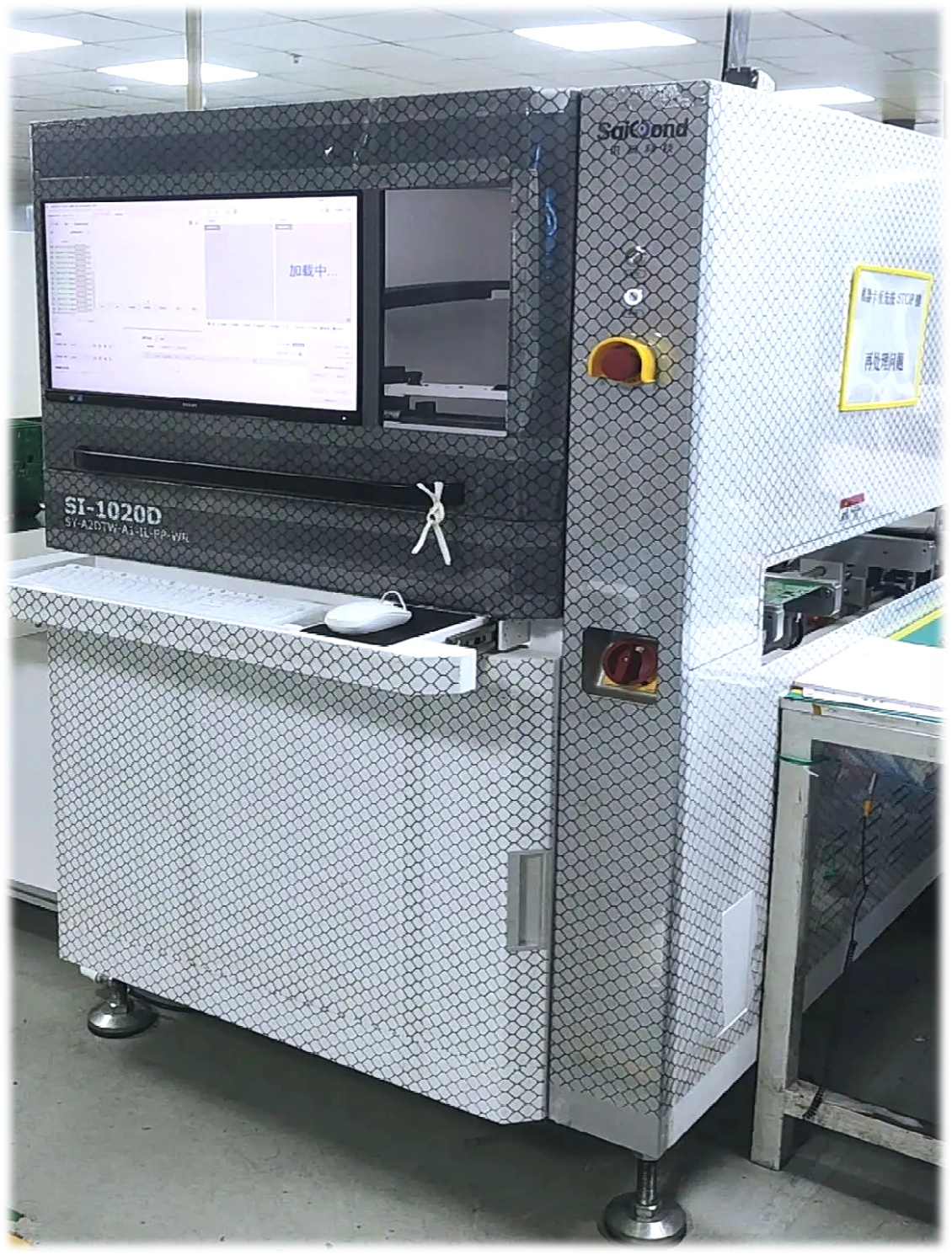

AOI (Automated Optical)
Post-placement and post-reflow optical inspection for every board.

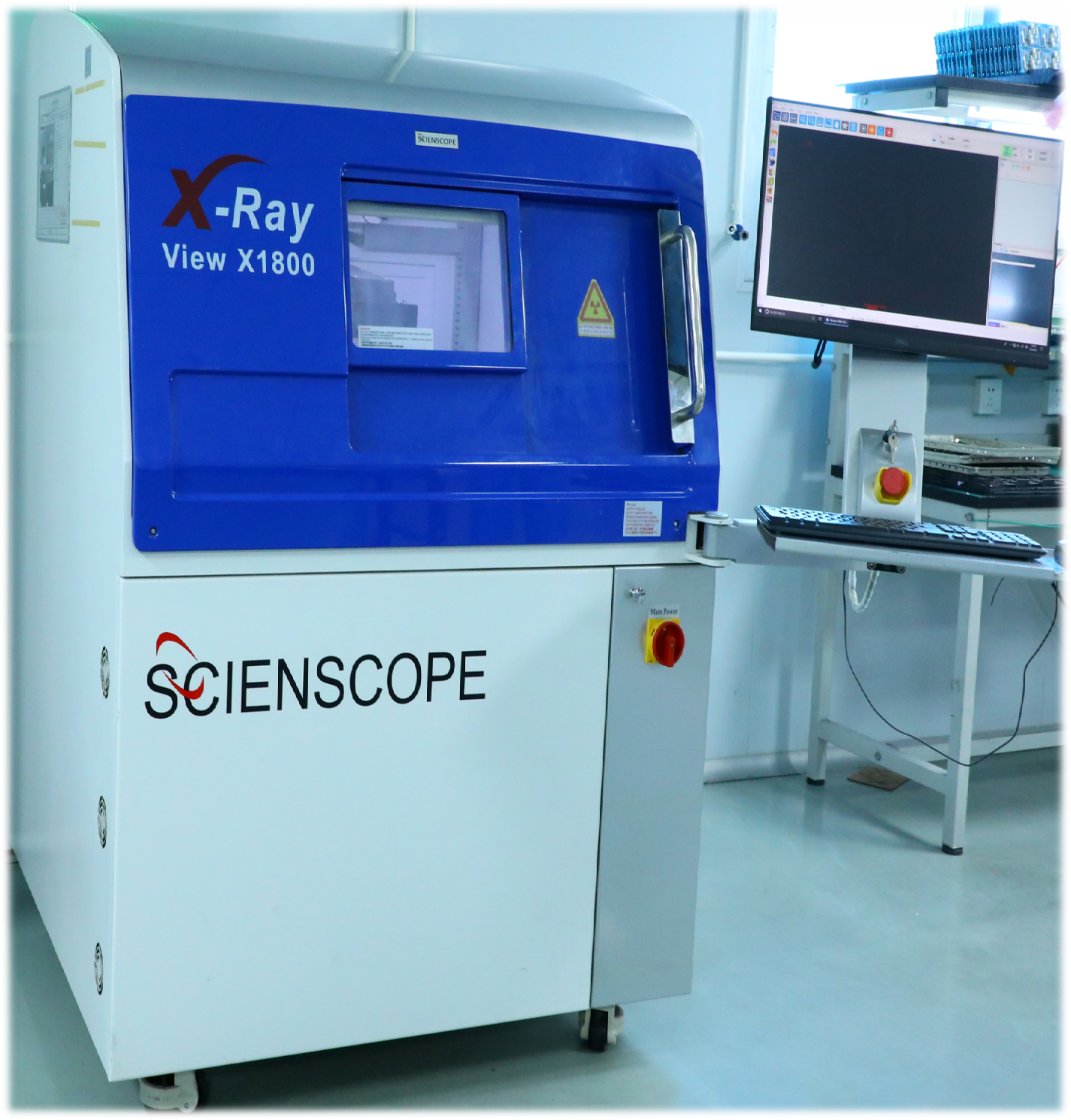

X-Ray Inspection
BGA and hidden-joint inspection for critical reliability verification.

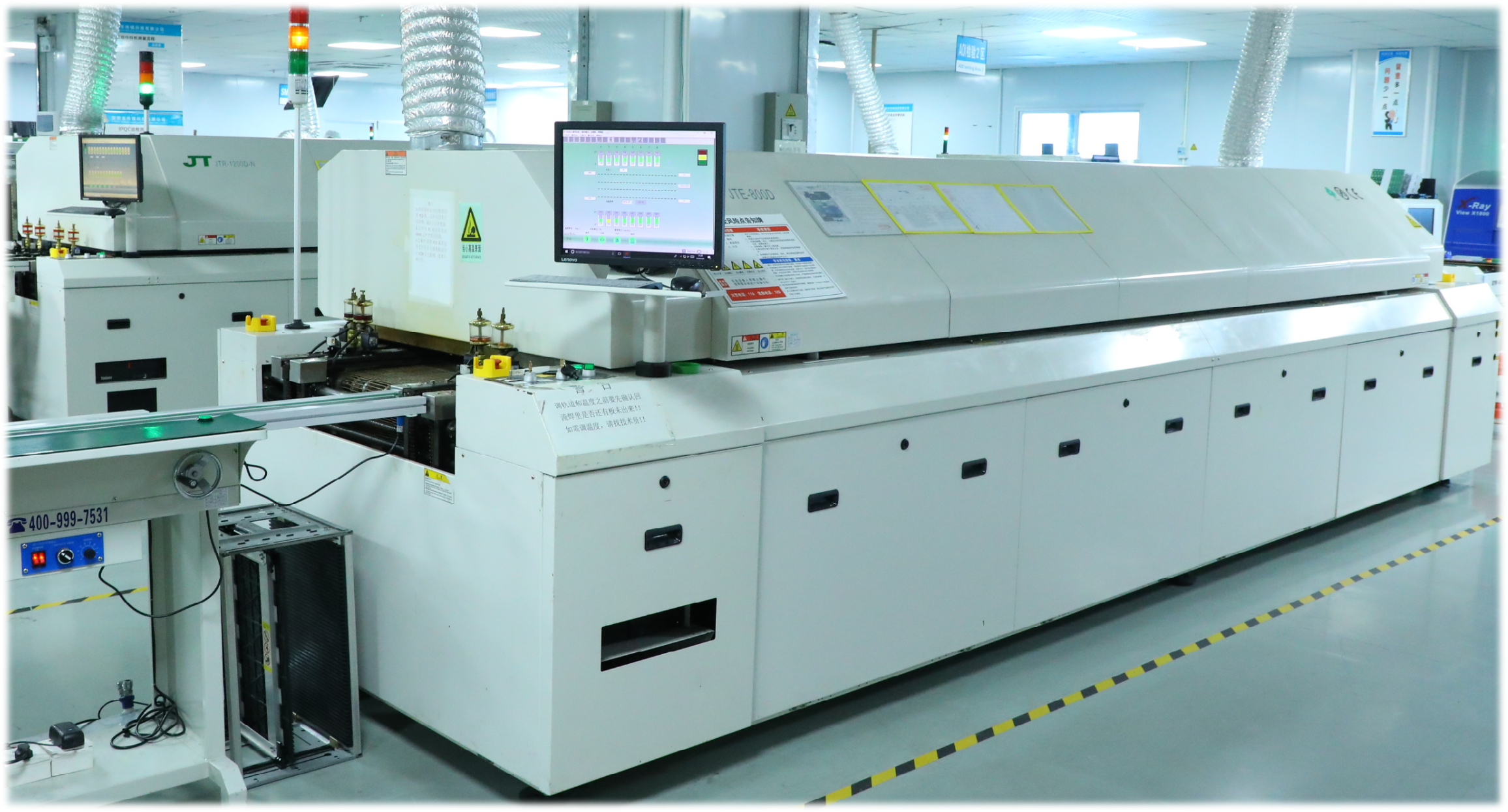

Nitrogen Reflow Oven
Dual-rail reflow with nitrogen atmosphere for void-free soldering.

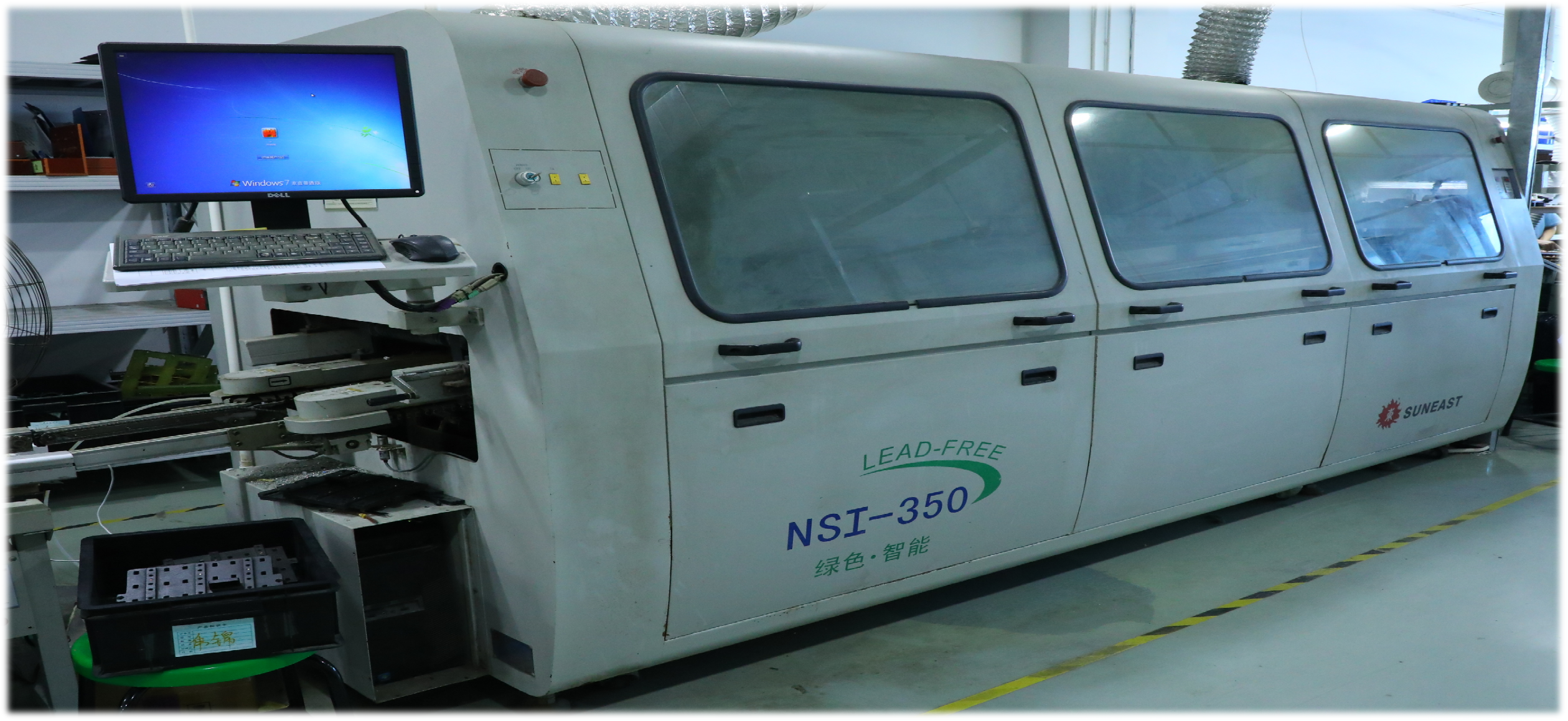

Wave Soldering
Dual-wave soldering for through-hole and mixed-technology assemblies.
±0.03mm
Placement Accuracy
01005
Min Component
0.25mm
Fine Pitch
20L
Max Layers
Environmental Protection

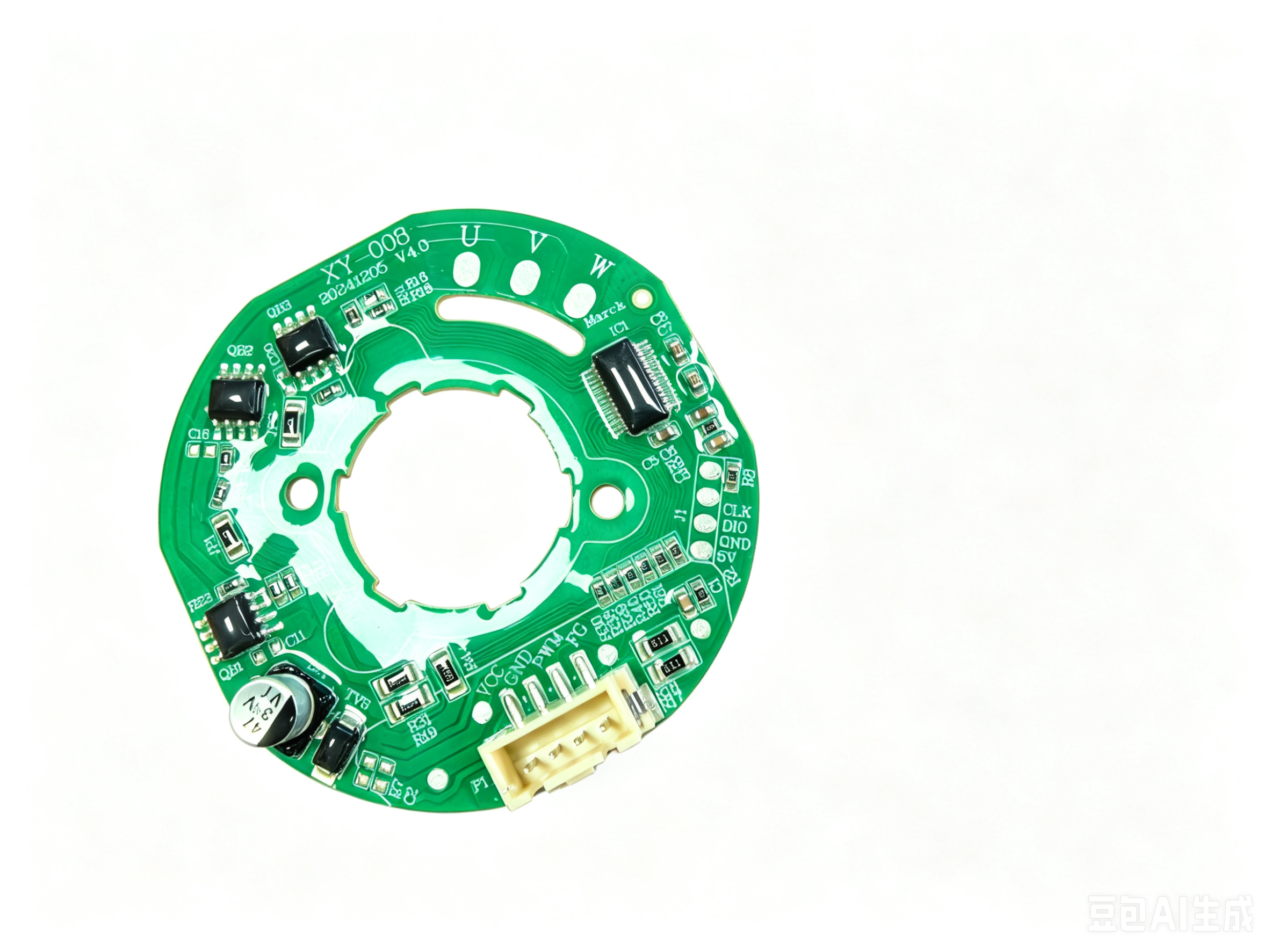

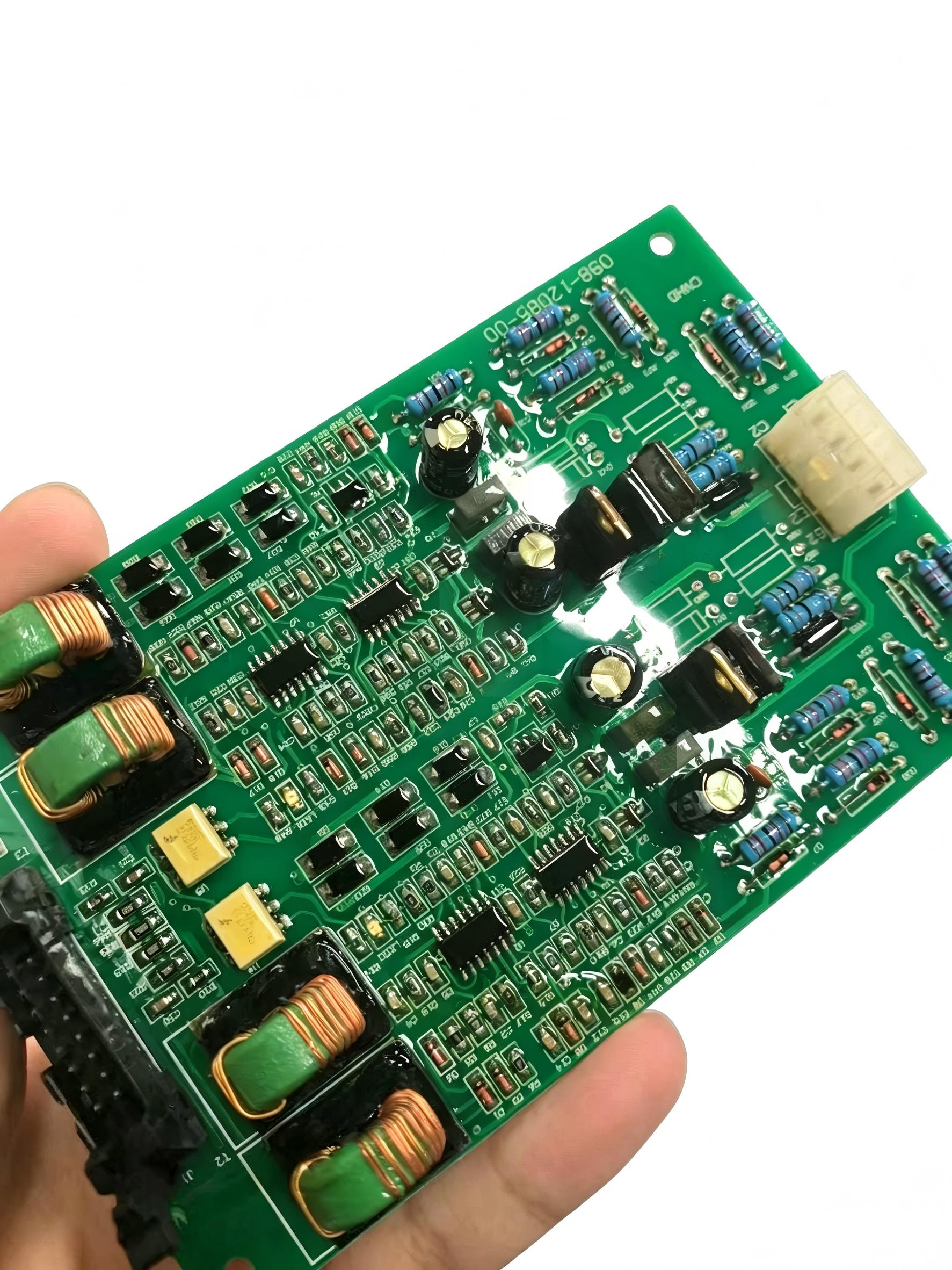

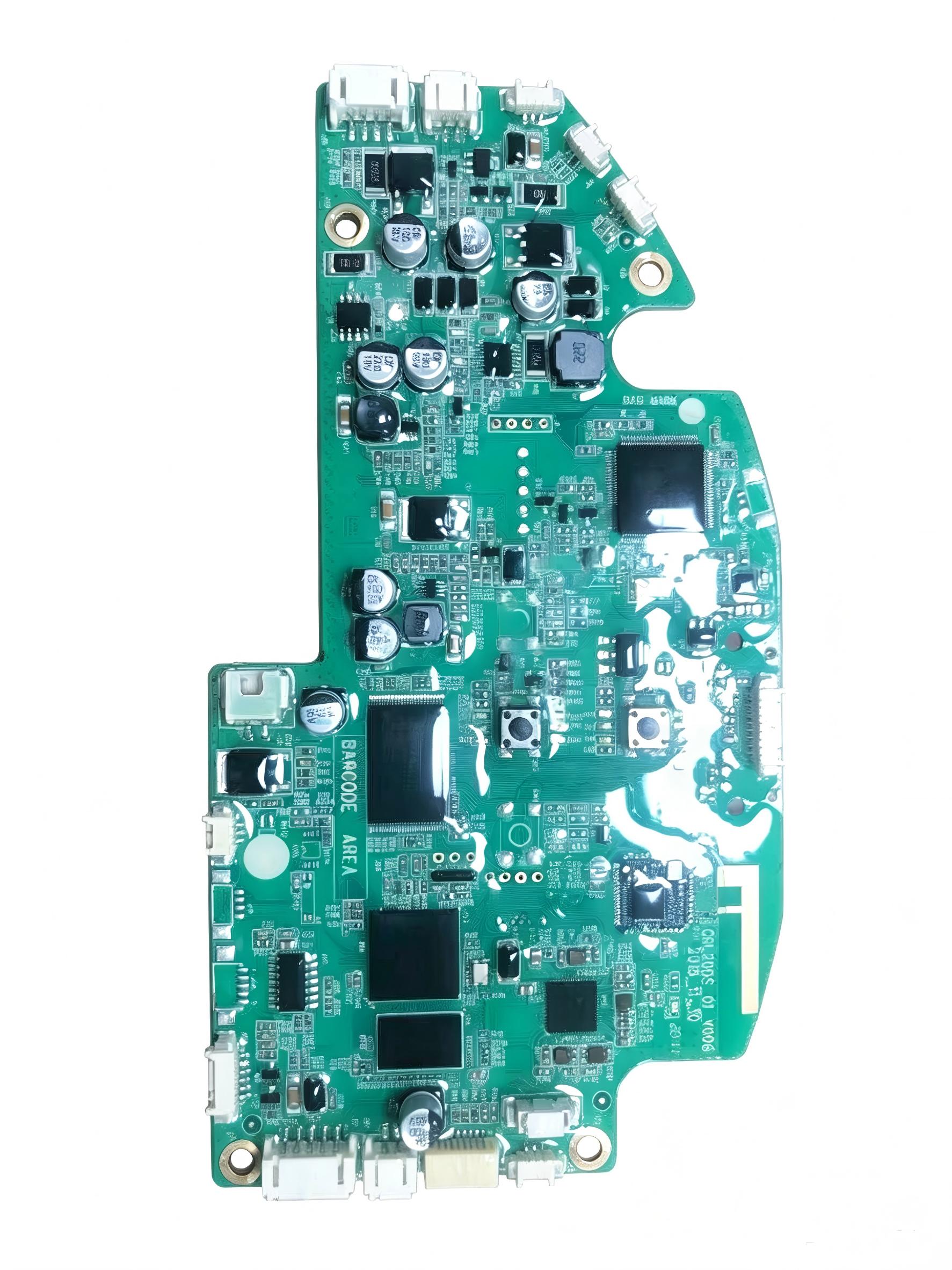

Conformal Coating (Three-Proof)
Conformal coating is a specialized protective film applied to PCBA surfaces, providing superior insulation, moisture-proofing, dust-proofing, anti-corrosion, and anti-aging protection. IPC-CC-830 compliant processes.
Critical for electronics deployed in harsh environments — automotive under-hood, outdoor telecom, marine, industrial control, and medical devices.
Acrylic (AR)
Fast-curing, easy rework, good moisture resistance. Ideal for general-purpose PCBA protection.
Polyurethane (UR)
Excellent chemical and abrasion resistance. Best for automotive and harsh-environment electronics.
Silicone (SR)
Extreme temperature range (-60°C to 200°C+). Perfect for BMS, outdoor, and high-temp applications.
Ready to Start Your
PCB Project?
Tell us your PCB requirements — layer count, material, quantity — and our engineering team will respond with a quote within 24 hours.
